High performance lug butterfly valve

Size2″~60″ (DN50~DN1500 mm)

OperatedWorm Gear, Pneumatic actuator, Electric actuator

Conection endLug Type

Conection standard150LB, 300LB

Working pressurePN20/PN50

Body materialWCB, Stainless steel, Duplex steel

Disc materialStainless steel, Duplex steel

Seat materialRPTFE/PPL

sale@valflovalve.com Request Price

Product Details

A High Performance Butterfly Valve (HPBV) is a type of butterfly valve designed for more demanding applications than general service butterfly valves. They are characterized by their ability to handle higher pressures and temperatures, offer better sealing, and provide enhanced durability and flow control. They are often used in industries like oil and gas, petrochemical, and power generation.

Technical Standard:
1.Design Standard: API609
2.Face to face: API 609.
3.Drive Connection: ISO5211.
4.Flange Standard: ASME B16.5.
5.Test Standard: API 598.

Product Advantages&Our Service:
1.Fire-proof structure
Fire-proof valve is tested to API 607 4th Edition and BS 6755 Part Il
2.Fixed axis
Fixed collar is installed in the top of axis, 2"-24"(DN50-600), when axis breaks accident, avoid the upper part to move out of gland.
3.Provide CE marked versions available
CE marked and documented valves that conform to the European Pressure Equipment Directive (PED) 97/23/EC are available in ANSI Class 150/300, both standard and Fire-Tite construction. Operating torques, construction potions and valve dimensions are exactly the same as the standard ANSI 150/300 offering.
4.Convenient to maintain and upkeep valve seats
Replace axis only by taking inserts down, without disassembling disc and axis.
5.Excellent for both On-Off and Control Application
5.1.Superior control characteristics.
5.2.Inherent flow characteristic is modified equal percentage.
5.3.Wide rangeability.
5.4.Tight shut-off even in control applications.
5.5.Standard lugged style valves are suitable for bidirectional dead-end service at the full pressure temperature rating of the valve.
6.Single-Source Responsibility
6.1.Purchase valves, actuators, and accessories, completely mounted from one source.
6.2.Available with electric, manual gear, and pneumatic double acting or spring return actuators and a variety of accessories including limit switch,solenoids, and positioners.
6.3.OEM service available through world-wide service centers.
7. Available in a Wide Choice of Material for a Broad Range of Applications
Standard body materials include carbon steel, stainless steel, Monel, Alloy20. Users can also, according to requirements,select other materials.
8.Pressure Testing Report,3.1 Certificate of Material can be provided.

Face to face dimension:

DN	mm	50	65	80	100	125	150	200	250	300	350	400	450	500	600	700	750	800	900	1050	1200	1350	1500
DN	inch	2	2-1/2	3	4	5	6	8	10	12	14	16	18	20	24	28	30	32	36	42	48	54	60
L (150LB)		43	49	49	54	57	57	64	71	81	92	102	114	127	154	165	190	190	184	222	254	267	279
L (300LB)		43	49	49	54	57	59	73	83	92	117	133	149	159	181

The data is for reference only, please consult sale@valflovalve.com for details.

QUESTIONS

If you are not finding the information you need or the information on this page is confusing, please email to sale@valflovalve.comorleave message for consultation, so we can help you (and others). Thank you.

FACTORY PHOTOS

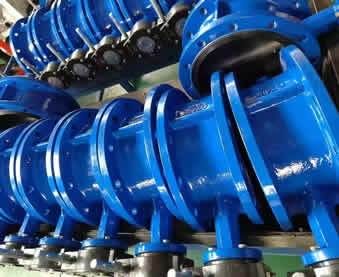

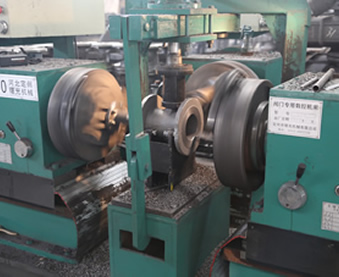

Valve Factory Production Process

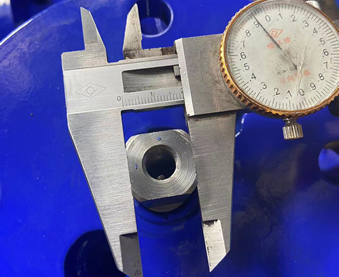

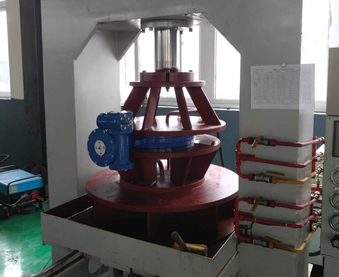

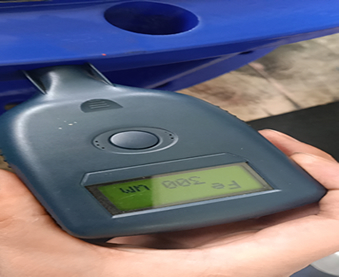

Valve Quality Inspection Process

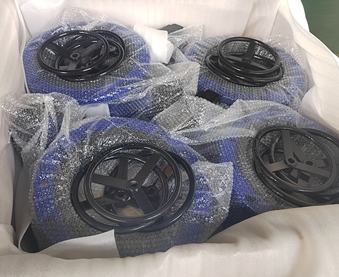

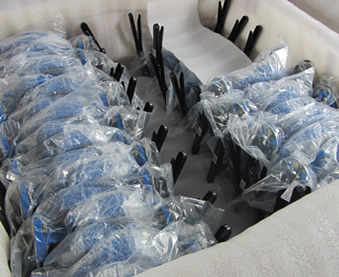

Valve Packaging and Transport

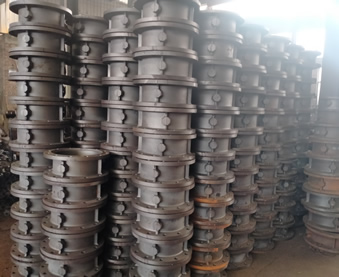

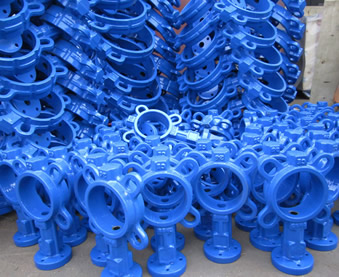

Valve Spare Parts
